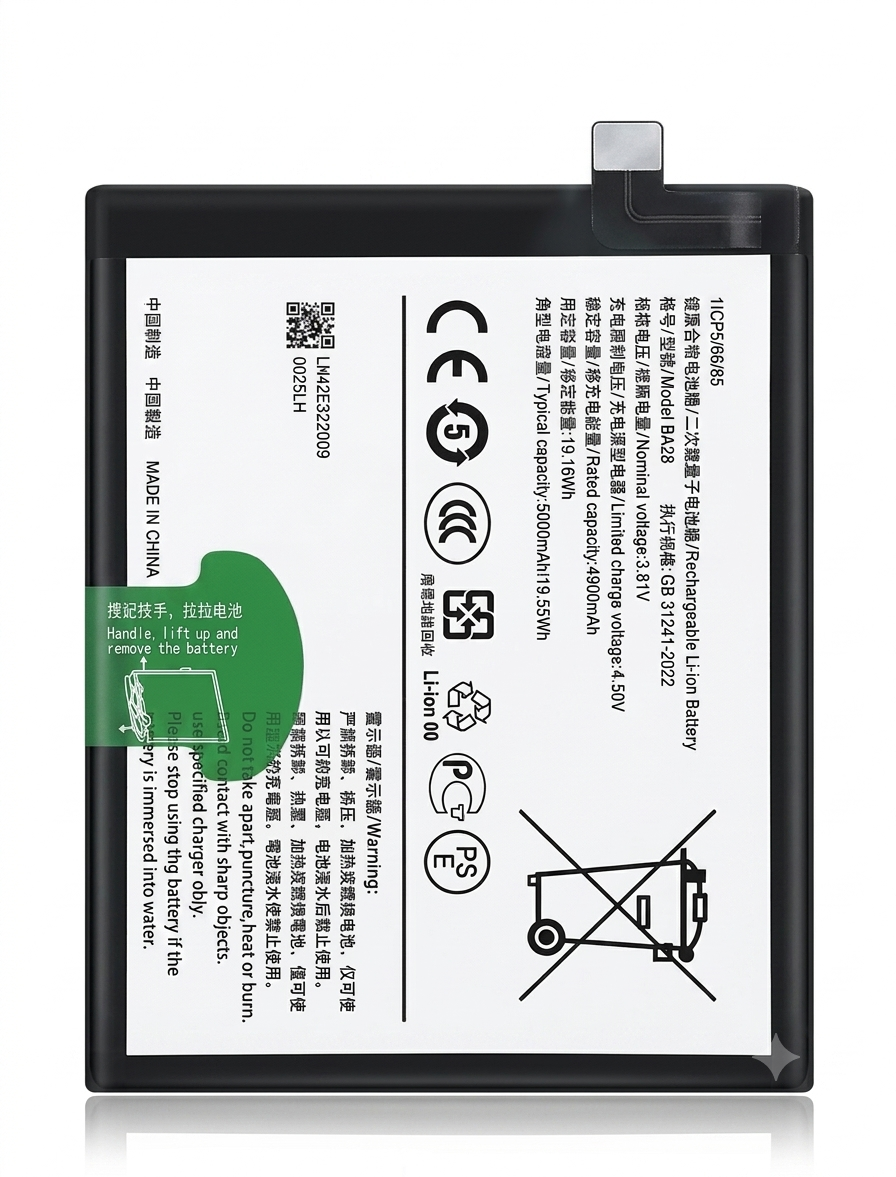

BA28 Replacement Battery for Vivo T3 5G (V2334) – 5000mAh High-Capacity Mobile Battery Module

Overview

Restore your smartphone's all-day power backup with this Premium Quality BA28 Replacement Battery designed specifically for the Vivo T3 5G (V2334). If your device suffers from quick power loss, overheating, or unpredictable shutdowns, this high-performance battery module provides clean, reliable energy restoration to get your phone operating like new.

Key Features

 High-Capacity Backup: Built with a typical capacity of 5000mAh (19.55Wh) and a rated capacity of 4900mAh (19.16Wh) to deliver continuous, reliable power throughout your day.

 A+ Grade Lithium Cells: Utilizes high-density rechargeable lithium-ion technology to maintain consistent voltage supply and ensure longer overall service life.

 Integrated Safety Systems: Features built-in smart circuit protection to actively prevent short circuits, overcharging, excessive discharge, and thermal spikes.

 Precision 1:1 Fit: Engineered to match the exact dimensions and motherboard flex layout of the Vivo T3 5G chassis, ensuring a secure placement without putting unnecessary pressure on surrounding internal components.

Technical Specifications

 Battery Model: BA28

 Compatible Device: Vivo T3 5G (V2334)

 Typical Capacity: 5000mAh / 19.55Wh

 Rated Capacity: 4900mAh / 19.16Wh

 Nominal Voltage: 3.81V

 Limited Charge Voltage: 4.50V

 Battery Type: Rechargeable Lithium-ion Battery

Installation & Bench Testing Best Practices

 Perform a Dry Bench Test: Connect the battery's logic flex connector ribbon directly to your phone's motherboard to dry test power output before peeling off any permanent protective films or green pull-tabs.

 Conditioning Phase: To calibrate the battery sensor properly, allow the new battery to drain down to 5% and then charge it fully to 100% without interruption for the first 3 charge cycles.

 Safety Instruction: Use specified chargers only. Do not disassemble, puncture, crush, or expose the unit to extreme heat.

 Professional Installation Recommended: Because changing internal modern smartphone batteries involves opening glued panels and handling delicate flex ribbons, installation by a trained technician is highly advised.

What’s inside the Pack?

 1 x High-Quality 5000mAh BA28 Replacement Battery for Vivo T3 5G
